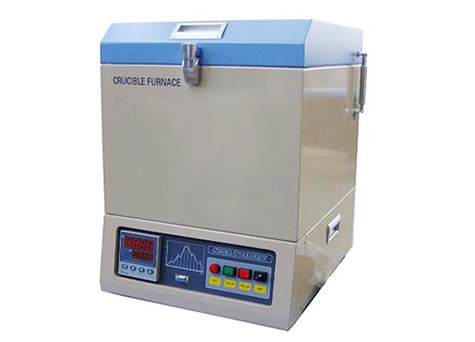

Top Loading High Temperature Lab Muffle Furnace 1200C / 1400C / 1700C Vacuum Crucible Furnace
  • Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL / FMJ
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-30 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:Up To 1700℃TYPE:1200℃, 1400℃, 1700℃
VOLUME:As Per Your OrderHEATING ELEMENT:Heating Wire
FURNACE CHAMBER:Alumina Ceramic FiberTEMPERATURE CONTROL:50 Segments Programmable And PID Auto Control
VOTAGE:AC 110V/220v 50/60 HzMAX. HEATING RATE:20°C /min
TEMPERATURE ACCURACY:±1℃TEMPERATURE UNIFORMITY:±5℃
APPLICATION:Tod LoadingVACUUM:-0.1Mpa (Optional)
HIGH LIGHT:electric muffle furnace, programmable muffle furnace

High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top Loading Vacuum Crucible Furnace

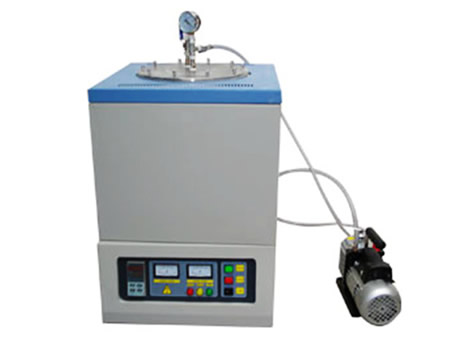

The vacuum system for top loading muffle furnace is optional (-0.1Mpa)

Facerom High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top Loading Crucible Furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace has big volume,  mainly used for production enterprises for the sintering, melting, annealing, etc.

Type: 1200℃  1400℃  1700℃
Furnace chamber: Top Loading
Volume: as per your order
Super heating element. (different type, different heater)
Excellent Ceramic fiber chamber
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃

Standard Spares:
High temperature gloves
Crucible clip
Operation Manual

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Software
Furnace furniture

Alumina crucible


Standard Chamber Size
Dia240 x H220mm
Dia40 x H300mm
Dia60 x H300mm
Dia80 x H300mm
Dia100 x H300mm
Dia120 x H300mm
Dia150 x H200mm

Note: Chamber size can be customized


Why Facerom's High Temperature Top Loading Muffle Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature Top Loading Muffle Furnace, 1200C 1400C 1700C Top Loading Crucible Furnace, contact us now to get a quote!
