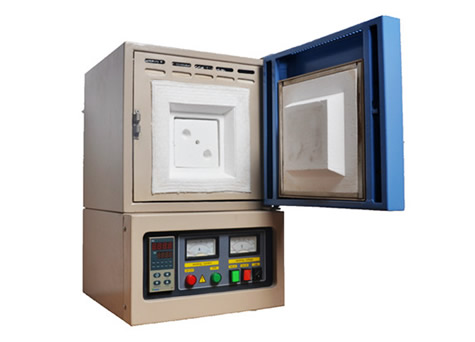

High Temperature 1200℃ Lab Sintering Muffle Furnace, Sintering Box Furnace
  • Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12N / FMJ-12N
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1200℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance WireFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃APPLICATION:Sintering
HIGH LIGHT:programmable muffle furnace, heat treatment muffle furnace

High Temperature 1200℃ Lab Sintering Muffle Furnace, Sintering Box Furnace

Facerom's High Temperature 1200℃ Lab Sintering Muffle Furnace, Sintering Box Furnace is mainly used for lab sintering.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace is mainly used for universities,  research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

Standard Parts:
High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:
7-inch touch screen
Gas Vent
Observation Hole
Furnace Furniture
Alumina crucible
Software

1200℃ Lab Sintering Muffle Furnace Technical Parameter:

Model Max temperature(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
FGL-12N-1 1200 100*100*100 1 0.8 1 K type
FGL-12N-2 1200 120*120*130 2 1.2 1 K type
FGL-12N-3 1200 150*150*150 3 2.5 1 K type
FGL-12N-5 1200 150*150*200 5 3 1 K type
FGL-12N-8 1200 200*200*200 8 5 1 K type
FGL-12N-12 1200 200*200*300 12 6 1 K type
FGL-12N-27 1200 300*300*300 27 8 1 K type
FGL-12N-36 1200 300*300*400 36 10 3 K type
FGL-12N-64 1200 400*400*400 64 16 3 K type
FGL-12N-125 1200 500*500*500 125 25 3 K type
FGL-12N-216 1200 600*600*600 216 36 3 K type
FGL-12N-512 1200 800*800*800 512 64 3 K type
FGL-12N-729 1200 900*900*900 729 80 3 K type
FGL-12N-1000 1200 1000*1000*1000 1000 100 3 K type
Chamber size can be customized

Why Facerom's 1200℃ Lab Sintering Muffle Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature 1200℃ Lab Sintering Muffle Furnace Sintering Box Furnace, contact us now to get a quote!
