Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12N / FMJ-12N
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1200℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance WireFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃APPLICATION:Lab Testing Oven
HIGH LIGHT:electric muffle furnace, programmable muffle furnace

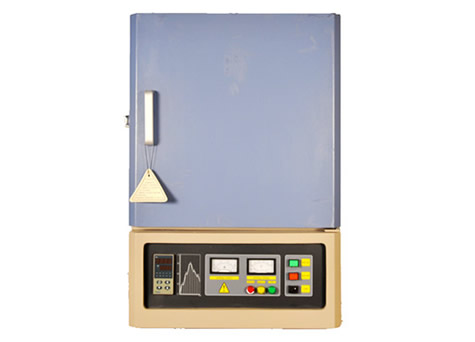

1200℃ High Temperature Lab Muffle Oven, 1200C Lab Oven

Facerom's 1200℃ High Temperature Lab Muffle Oven, 1200C Lab Oven is mainly used for lab testing under 1200C.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

Standard Parts:
High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:
7-inch touch screen
Gas Vent
Observation Hole
Furnace Furniture
Alumina crucible
Software


1200℃ High Temperature Lab Muffle Oven Technical Parameter

Model	Max temperature(°C)	Inner size (W *H * D) mm	Volume (L)	Power (KW)	Phase	Thermocouple
FGL-12N-1	1200	100*100*100	1	0.8	1	K type
FGL-12N-2	1200	120*120*130	2	1.2	1	K type
FGL-12N-3	1200	150*150*150	3	2.5	1	K type
FGL-12N-5	1200	150*150*200	5	3	1	K type
FGL-12N-8	1200	200*200*200	8	5	1	K type
FGL-12N-12	1200	200*200*300	12	6	1	K type
FGL-12N-27	1200	300*300*300	27	8	1	K type
FGL-12N-36	1200	300*300*400	36	10	3	K type
FGL-12N-64	1200	400*400*400	64	16	3	K type
FGL-12N-125	1200	500*500*500	125	25	3	K type
FGL-12N-216	1200	600*600*600	216	36	3	K type
FGL-12N-512	1200	800*800*800	512	64	3	K type
FGL-12N-729	1200	900*900*900	729	80	3	K type
FGL-12N-1000	1200	1000*1000*1000	1000	100	3	K type
Chamber size can be customized

Why Facerom's 1200℃ High Temperature Lab Muffle Oven?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost-efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our 1200℃ High Temperature Lab Muffle Oven, 1200C Lab Oven, contact us now to get a quote!
