Double Layer Lab Muffle Furnace Box Shape 120 - 250mm Thickness Long Life
  • Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-12N / FMJ-12N
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1200℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality Fe-Cr-Al-Mo Resistance WireFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃APPLICATION:Scientific
HIGH LIGHT:electric muffle furnace, programmable muffle furnace

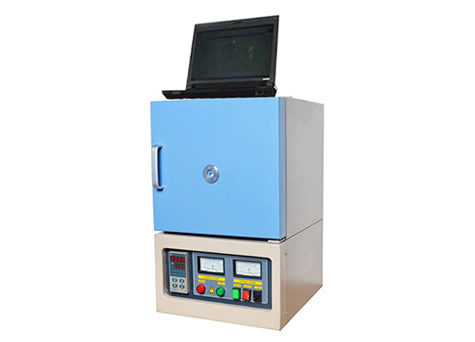

High Temperature 1200℃ Lab Scientific Muffle Furnace, 1200C Scientific Box Furnace

Facerom's High Temperature 1200℃ Lab Scientific Muffle Furnace, 1200C Scientific Box Furnace is mainly used for lab testing process.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
Double Layer Lab Muffle Furnace Box Shape 120 - 250mm Thickness Long Life 0

Standard Parts:
High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:
7-inch touch screen
Gas Vent
Observation Hole
Furnace Furniture
Alumina crucible
Software

High Temperature 1200℃ Lab Scientific Muffle Furnace Technical Parameter

Model Max temperature(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
FGL-12N-1 1200 100*100*100 1 0.8 1 K type
FGL-12N-2 1200 120*120*130 2 1.2 1 K type
FGL-12N-3 1200 150*150*150 3 2.5 1 K type
FGL-12N-5 1200 150*150*200 5 3 1 K type
FGL-12N-8 1200 200*200*200 8 5 1 K type
FGL-12N-12 1200 200*200*300 12 6 1 K type
FGL-12N-27 1200 300*300*300 27 8 1 K type
FGL-12N-36 1200 300*300*400 36 10 3 K type
FGL-12N-64 1200 400*400*400 64 16 3 K type
FGL-12N-125 1200 500*500*500 125 25 3 K type
FGL-12N-216 1200 600*600*600 216 36 3 K type
FGL-12N-512 1200 800*800*800 512 64 3 K type
FGL-12N-729 1200 900*900*900 729 80 3 K type
FGL-12N-1000 1200 1000*1000*1000 1000 100 3 K type
Chamber size can be customized

Why Facerom's High Temperature 1200℃ Lab Scientific Box Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost-efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature 1200℃ Lab Scientific Muffle Furnace, 1200C Scientific Box Furnace, contact us now to get a quote!
