50 / 60 Hz High Efficiency Electric Furnace , Ceramic Fiber Chamber Electric Melting Furnace
  • Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-18HM / FMJ-18HM
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1800℃VOLUME:1 ~ 8L
HEATING ELEMENT:Super MoSi2 Heating ElementFURNACE CHAMBER:Ceramic Fiber Chamber Imported From Japan, Ultra-high Temperature Coating Inside
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Malting
HIGH LIGHT:electric muffle furnace, heat treatment muffle furnace

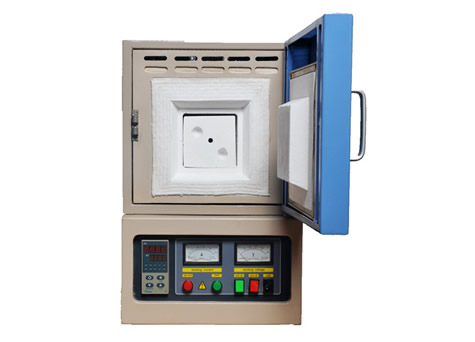

High Temperature 1800℃ Electric Melting Muffle Furnace, 1800C Melting Chamber Furnace

Facerom's High Temperature 1800℃ Electric Melting Muffle Furnace, 1800C Melting Chamber Furnace is mainly used for the melting process under 1800C.

Facerom muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

Max working temperature 1800℃
Volume 1~8L
Super MoSi2 heating element.
Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
50 segments programmable and PID auto control
With over temperature alarm function
Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Furnace furniture
Alumina crucible
Software

1800℃ Electric Lab Bench Top Muffle Furnace Technical Parameter:

Model

Max

Temperature

(℃)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
FGL-18HM-1 1800 100*100*100 1 2 1 B type
FGL-18HM-2 1800 120*120*130 2 4 1 B type
FGL-18HM-3 1800 150*150*150 3 6 1 B type
FGL-18HM-5 1800 150*150*200 5 7 1 B type
FGL-18HM-8 1800 200*200*200 8 8 1 B type

Why Facerom's 1800℃ Electric Lab Bench Top Muffle Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're inerested in our High Temperature 1800℃ Electric Melting Muffle Furnace, 1800C Melting Chamber Furnace, contact us now to get a quote!
