Electric Melting Lab Muffle Furnace High Thermal Effect Strength Structured
  • Introduction
Product Details:
Place of Origin:China
Brand Name:Facerom Furnace
Certification:CE
Model Number:FGL-17M / FMJ-17M
Payment & Shipping Terms:
Minimum Order Quantity:1 Set
Price:Negotiation
Packaging Details:Strong wooden box for global shipping
Delivery Time:7-21 Working days
Payment Terms:L/C, T/T, Western Union
Supply Ability:200 Sets per month

MAX WORKING TEMPERATURE:1700℃VOLUME:1 ~ 1000L
HEATING ELEMENT:High Quality MoSi2 Heating ElementFURNACE DOOR:The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL:50 Segments Programmable And PID Auto ControlALARM:With Over Temperature Alarm Function
COOLING:Cooling Fan Can Reduce The Temperature Of The CasingVOTAGE:AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE:20°C /minTEMPERATURE ACCURACY:±1℃
TEMPERATURE UNIFORMITY:±5℃APPLICATION:Melting
HIGH LIGHT:electric muffle furnace, programmable muffle furnace

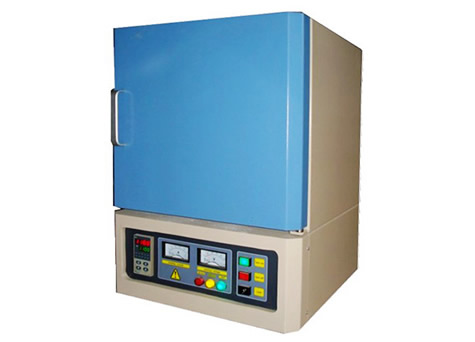

High Temperature 1700℃ Electric Melting Muffle Furnace, 1700C Melting Box Furnace
Facerom's High Temperature 1700℃ Electric Melting Muffle Furnace, 1700C Melting Box Furnace is mainly used for the melting under 1700C.

Facerom muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

Max working temperature 1700℃
Volume 1~1000L
High quality MoSi2 heating element.
The upper door and the side door can be customized to keep the operator away from the heat source.
50 segments programmable and PID auto control
With over temperature alarm function

Standard Spares:
Fire brick
High temperature gloves
Crucible clip
Operation Manual
MoSi2 heating element 2pcs

Optional Spares:
7-inch touch screen
Gas vent
Observation hole
Furnace furniture
Alumina crucible
Software

High Temperature 1700℃ Electric Melting Muffle Furnace Technical Parameter

Model

Max temperature

(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
FGL-17M-1 1700 100*100*100 1 1 1 B type
FGL-17M-2 1700 120*120*130 2 3 1 B type
FGL-17M-3 1700 150*150*150 3 4 1 B type
FGL-17M-5 1700 150*150*200 5 5 1 B type
FGL-17M-8 1700 200*200*200 8 7 1 B type
FGL-17M-12 1700 200*200*300 12 8 1 B type
FGL-17M-27 1700 300*300*300 27 10 3 B type
FGL-17M-36 1700 300*300*400 36 12 3 B type
FGL-17M-64 1700 400*400*400 64 20 3 B type
FGL-17M-125 1700 500*500*500 125 30 3 B type
FGL-17M-216 1700 600*600*600 216 45 3 B type
FGL-17M-512 1700 800*800*800 512 80 3 B type
FGL-17M-729 1700 900*900*900 729 96 3 B type
FGL-17M-1000 1700 1000*1000*1000 1000 120 3 B type
Chamber size can be customized


Why Facerom's High Temperature 1700℃ Electric Melting Box Furnace?
Manufacturer with 10+ years' experience
Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response
Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our High Temperature 1700℃ Electric Melting Muffle Furnace, 1700C Melting Box Furnace, contact us now to get a quote!
